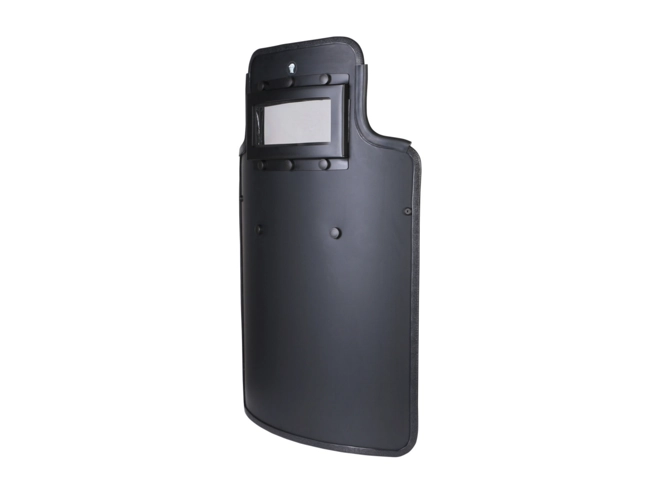

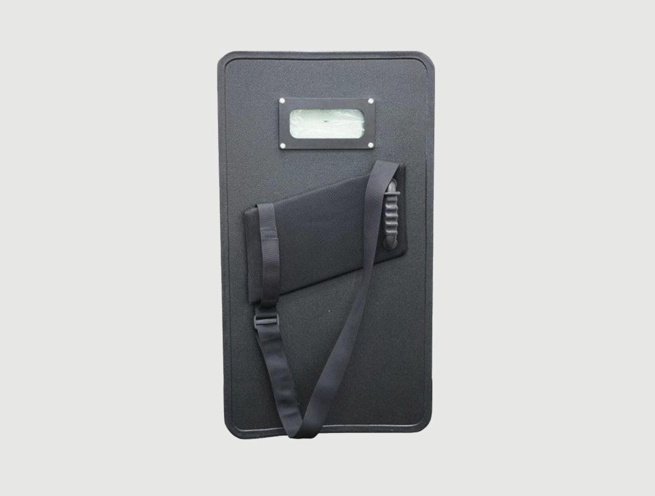

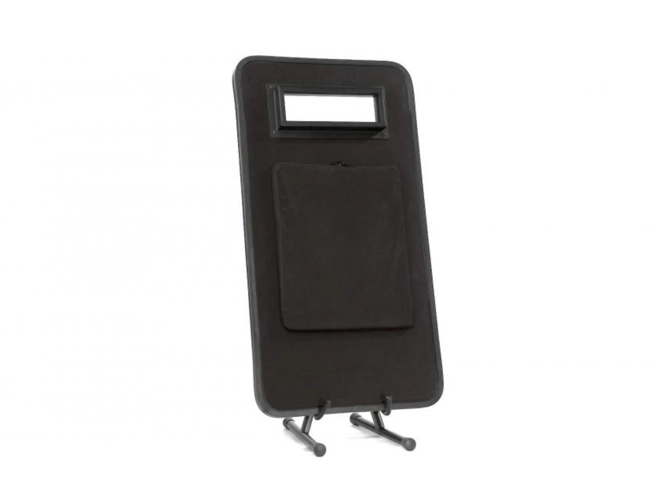

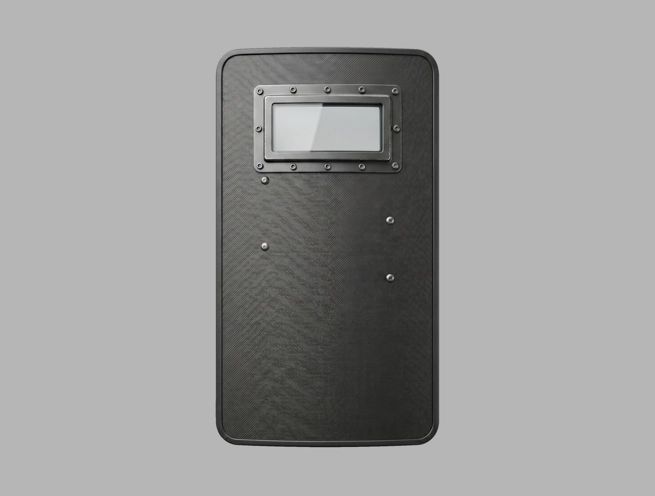

Ballistic Shield
The Madoors USA Ballistic Shield is a NIJ Level IIIA certified tactical protection shield designed to stop and deflect bullets, fragmentation, stabbing and cutting weapons, and hand-thrown and launched projectiles including rocks and arrows — providing tactical firearms teams and law enforcement personnel with reliable ballistic and fragmentation protection in every kind of threat situation. Available in five standard sizes from 450×650mm extra-small at 2.8kg through 600×1750mm grande at 9.3kg, incorporating the latest materials and technology in an ergonomically refined lightweight design with handle system, optional window in medium, large, and grande sizes, optional top-mounted lights, optional carry bag, rigid handles, cut-out weapon rests, and collapsible configuration, the Madoors USA Ballistic Shield provides the complete tactical personnel protection solution for any threat scenario.
TECHNICAL SPECIFICATIONS
The Madoors USA Ballistic Shield range is certified to NIJ Level IIIA — the National Institute of Justice standard providing protection against high-velocity handgun ammunition including .44 Magnum and .357 SIG at the highest handgun protection level. NIJ Level IIIA protection confirms that the shield stops the most powerful handgun calibers in common use, providing the protection level required for the full range of armed confrontation scenarios encountered by tactical police and law enforcement teams.
The five standard sizes provide the complete range of tactical deployment options — from the highly mobile extra-small and small sizes for individual officer carry and close-quarters operations, through the medium size for standard tactical team operations, to the large and grande sizes providing near full-body coverage for the highest-risk entry and approach operations. Each size is engineered to the minimum weight achievable at NIJ Level IIIA protection, using the latest lightweight ballistic materials to provide maximum mobility without compromising protection performance.
Extra-small — 450×650mm (18×25.5 inches), 2.8kg (6.2lb). The most portable configuration for rapid individual deployment, concealed carry in vehicles, and close-quarters confined space operations where the smallest possible shield footprint is required.
Small — 550×650mm (21.5×25.5 inches), 3.3kg (7.3lb). Standard individual officer shield for patrol, checkpoint, and standard tactical approach operations. Covers the head and upper torso of a crouching officer.
Medium — 550×1000mm (21.5×39 inches), 6.0kg (13.2lb). Extended coverage from head to above knee for a crouching officer. Window option available. Standard tactical team door-entry shield.
Large — 600×1300mm (23.5×51 inches), 7.5kg (16.5lb). Near full-body coverage for a crouching officer. Window option available. High-risk entry and approach operations.
Grande — 600×1750mm (23.5×69 inches), 9.3kg (20.5lb). Full-body coverage providing protection from head to toe for a standing officer. Window option available. Maximum protection for the highest-risk direct threat exposure operations.
The protection range extends beyond ballistic threats — NIJ Level IIIA shields also provide protection against stabbing and cutting weapons, directly addressing the combined weapon threat scenarios of law enforcement operations where threats may include both firearms and edged weapons in the same incident. Protection against hand-thrown and launched projectiles including rocks and arrows extends the shield's utility to public order operations, riot situations, and any scenario where non-firearm projectile threats are present alongside or instead of firearm threats.
KEY FEATURES
NIJ Level IIIA — Highest Handgun Protection
NIJ Level IIIA is the highest available ballistic protection level for personnel shields that maintain practical tactical mobility — it confirms protection against .44 Magnum and .357 SIG ammunition at the velocity levels confirming protection against the most powerful handgun calibers in common tactical threat scenarios. This protection level directly addresses the primary ballistic threat to law enforcement officers in the overwhelming majority of armed confrontation incidents — handgun fire — while maintaining the shield weight and dimensions that allow active tactical movement.
Five Sizes — From Individual Carry to Full-Body Coverage
The five standard sizes covering 2.8kg extra-small to 9.3kg grande provide the complete tactical deployment range — the appropriate size is selected for the specific operation type, the expected threat distance and exposure, and the mobility requirement of the tactical role. Smaller sizes for mobile individual deployment in confined environments and larger sizes for high-risk door entry and approach where maximum coverage is the operational priority. This size range directly ensures that every tactical situation has the appropriate shield specification.
Optional Window — Threat Observation from Protection
The window option on medium, large, and grande shields provides the transparent ballistic viewing aperture required for safe threat observation — the officer can observe the threat environment ahead of the shield without exposing their face above or around the shield. The window material is ballistic-rated at or above the NIJ Level IIIA protection level of the shield body — the window does not represent a reduced-protection gap in the shield face. This observation capability directly enables safer threat assessment and more accurate firearm deployment from behind complete protection.
Ergonomically Refined Handle System — Extended Operation Comfort
The ergonomically refined handle system developed over years of tactical feedback directly provides the grip comfort and arm position required for extended shield carry and active tactical movement — the handle geometry maintains the natural forearm and wrist position that minimizes muscle fatigue during extended operations. This ergonomic refinement is the practical difference between a shield that can be carried effectively for extended operations and one that causes fatigue-induced grip loosening that compromises the protection position.
Optional Top-Mounted Lights — Low-Light Operation
The optional lights mountable to the top of the shield provide illumination of the threat environment ahead of the shield for low-light, nighttime, and confined space tactical operations — directly enabling the same tactical effectiveness in darkness as in full illumination. The top-mounted position provides the most effective forward illumination geometry, projecting light over the shield face into the threat area directly ahead.
Optional Carry Bag — Storage & Transport Protection
The carry bag option for each shield size provides protected storage and transport of the shield — preventing surface damage to the ballistic material during vehicle transport, storage, and deployment staging. The carry bag directly extends the service life of the shield's ballistic material by protecting it from the physical damage that degrades ballistic performance over time.
Optional Collapsible Configuration — Concealment & Compact Storage
The collapsible shield option provides reduced storage dimensions for vehicle carry, pre-deployment staging, and any application where the full-size shield cannot be stored or transported conveniently. The collapsible design deploys to the full protective dimensions for operational use and collapses to the compact storage configuration when not in use — directly enabling the shield to be carried as standard vehicle equipment without the storage space constraints of fixed-dimension shields.
Optional Weapon Rest — Supported Aim
The cut-out weapon rest option provides the supported aim position for accurate firearm use from behind the shield — the cut-out geometry supports the weapon barrel at the correct height for aiming position while maintaining ballistic material coverage across the shield face above and below the weapon rest. This supported aim directly improves accuracy during the high-stress conditions of active threat engagement from behind a shield.
Comprehensive Threat Coverage — Ballistic, Edged & Projectile
The protection against ballistic, stabbing and cutting, and thrown and launched projectile threats from a single shield directly addresses the multi-threat environment of law enforcement and tactical operations — incidents that begin as armed confrontations may include edged weapon attacks, and public order situations may include thrown projectiles alongside firearm threats. The comprehensive protection coverage eliminates the need for different shields for different threat types.
SIZE SELECTION GUIDE
Extra-Small 450×650mm — 2.8kg — Individual rapid-deployment, vehicle carry, close-quarters confined space.
Small 550×650mm — 3.3kg — Standard individual officer tactical approach, patrol carry.
Medium 550×1000mm — 6.0kg — Tactical team standard entry shield, upper body to knee coverage, window option.
Large 600×1300mm — 7.5kg — High-risk entry shield, near full-body coverage, window option.
Grande 600×1750mm — 9.3kg — Maximum coverage standing full-body protection, highest-risk direct exposure, window option.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Ballistic Shields are deployed across the full range of law enforcement and military tactical protection operations.
- Police tactical unit armed confrontation shields
- SWAT team door entry and approach shields
- Counter-terrorism operation personnel protection
- Hostage rescue tactical team entry shields
- Armed robbery response law enforcement shields
- Public order and riot control protection shields
- Military close-quarters battle personnel shields
- Special forces tactical entry protection shields
- Prison and correctional facility emergency response
- Court complex and justice facility security shields
- Border security armed response personnel protection
- Police patrol vehicle standard carry ballistic shields
- VIP protection close protection officer shields
- Military checkpoint personnel threat protection
- Any tactical law enforcement or military operation requiring NIJ Level IIIA certified ballistic and multi-threat personnel protection shield
