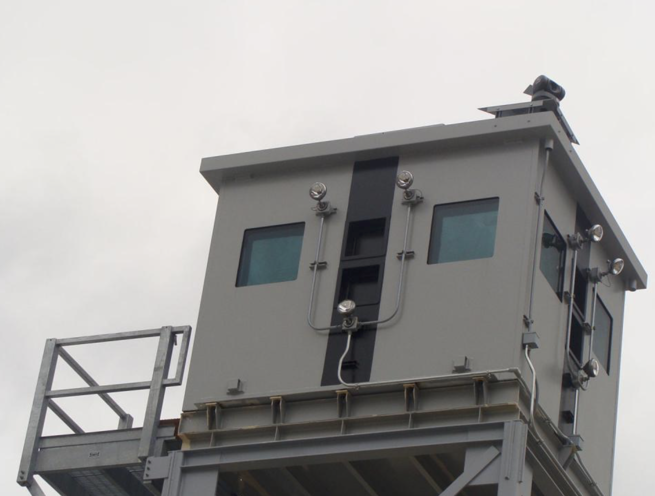

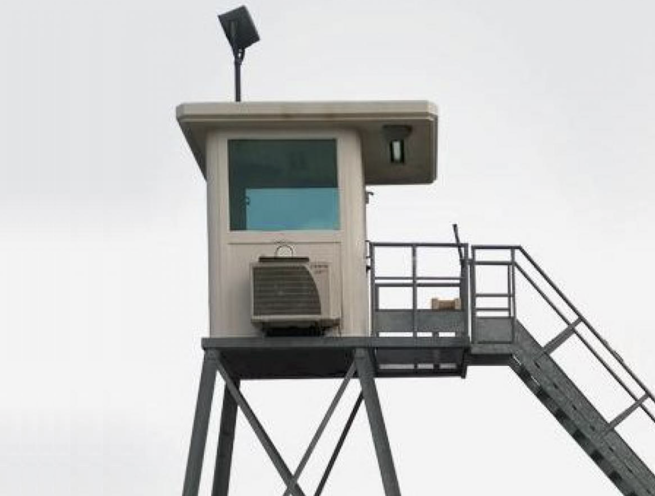

Ballistic Security Tower Guard Booth
The Madoors USA Ballistic Security Tower Guard Booth is a ballistic steel observation security tower and guard booth system manufactured entirely in USA from high-quality certified materials — available with custom dimensions, fittings, and security levels for every model, and supplied complete with thermal insulation, internal fittings, and accessories ready for use on delivery. From ground-level security booths anchored to a concrete pad through to elevated platforms and towers at heights of 3, 4, 5, 6, 8, and 10 meters — with platforms above 10 meters classified as military-grade towers — the Madoors USA ballistic security tower system serves perimeter protection, parking lot security, border control, military and police installations, and truck traffic gate positions across the full range of security tower height and protection requirements.
The most convenient installation configuration is the fully factory-assembled elevated platform — shipped ahead of or together with the security booth, offloaded first, bolted down, and then used as the receiving structure for the hoisted security booth, with the stairway bolted last and electrical supply and low-voltage wiring connected to complete the installation. This factory-assembled approach eliminates on-site platform fabrication, reduces installation time, and ensures structural quality is controlled in the factory rather than in field conditions.
TECHNICAL SPECIFICATIONS
Madoors USA Ballistic Security Tower Guard Booths are constructed from ballistic steel, providing bullet-resistant wall and structural protection for security personnel occupying the booth across the full duty period. The roof is thermally insulated as standard. Wall thermal insulation is available as an optional upgrade, providing full envelope thermal insulation for deployments in hot and cold climate environments where personnel comfort across extended shifts is a priority.
Every model is manufactured to customer-specified dimensions, fitting configurations, and ballistic security levels — covering the full range of tower booth sizes from compact single-occupant guard posts through to multi-personnel observation towers with communications and surveillance equipment fitout. High-quality certified materials are used throughout, with all manufacturing completed in USA under certified production standards.
Standard platform heights are 3, 4, 5, 6, 8, and 10 meters. Platforms above 10 meters are classified as towers and are typically specified for military, correctional, and utility facility applications requiring extended observation range and enhanced sight line coverage over large perimeters. Security tower booths can be anchored to a new or existing level concrete pad at ground level, or installed on top of a pre-engineered factory-assembled elevated platform for applications requiring higher visibility and better sight lines over the protected area.
Standard electrical fitout includes a safe DC/AC inverter system. Optional upgrades include split air conditioning, anti-sun glare windows, projectors, and a shelf for communications equipment — allowing the tower booth to be fitted out as a fully self-contained, climate-controlled, communications-equipped security observation position.
KEY FEATURES
Ballistic Steel Construction — Certified Materials
The tower booth body is constructed from ballistic steel manufactured from high-quality certified materials, providing bullet-resistant protection for security personnel throughout the observation and duty period. Ballistic steel construction covers the walls, structural frame, and all load-bearing elements of the booth body — ensuring that the protective envelope of the security tower is maintained across the full perimeter of the occupied space.
Custom Dimensions, Fittings & Security Level
Every Madoors USA ballistic security tower model is manufactured to customer-specified dimensions, internal fittings, and ballistic security level — eliminating the compromise of standard-size products that do not precisely match the site geometry, operational requirements, or security specification of each installation. Custom manufacturing ensures that the delivered tower booth is optimized for the specific deployment environment.
Thermal Insulation — Standard Roof, Optional Walls
The booth roof is thermally insulated as standard, providing protection against solar heat gain through the roof structure in hot climate deployments. Optional wall thermal insulation extends the insulated envelope to all four walls, maintaining comfortable interior temperatures throughout extended security shifts in both hot and cold climate conditions — supporting personnel alertness and operational effectiveness across the full duty period.

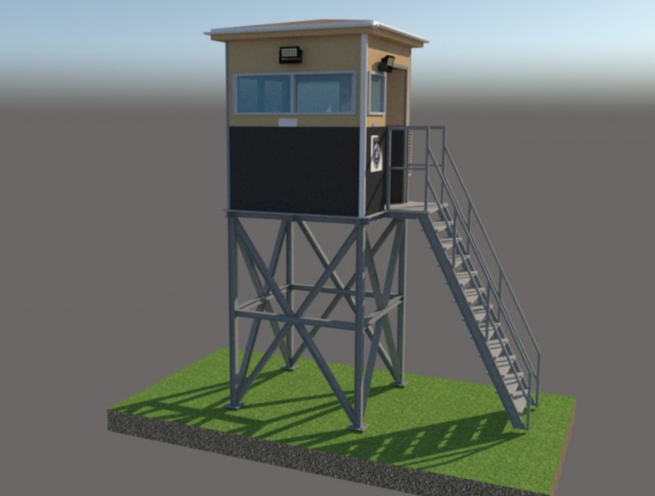

Factory-Assembled Elevated Platform — Most Convenient Installation
The factory-assembled elevated platform is the most convenient and highest-quality installation configuration, with the complete platform structure fabricated in the factory and shipped ready to bolt down at the installation site. The factory-assembled approach eliminates on-site structural fabrication, reduces installation time, ensures dimensional precision, and provides a platform structure of consistent factory-controlled quality at every installation location.

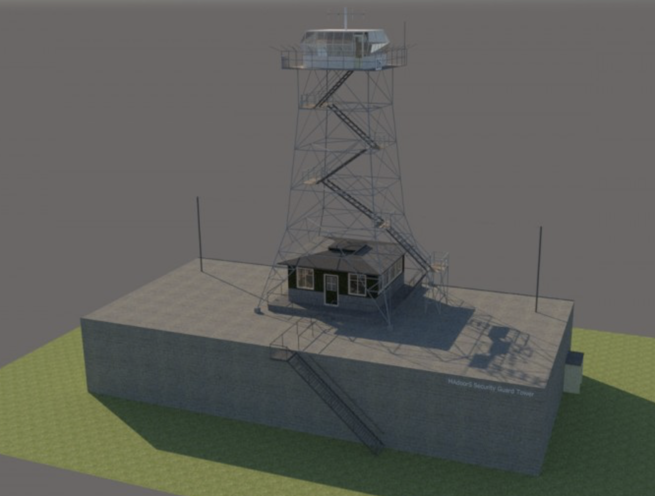

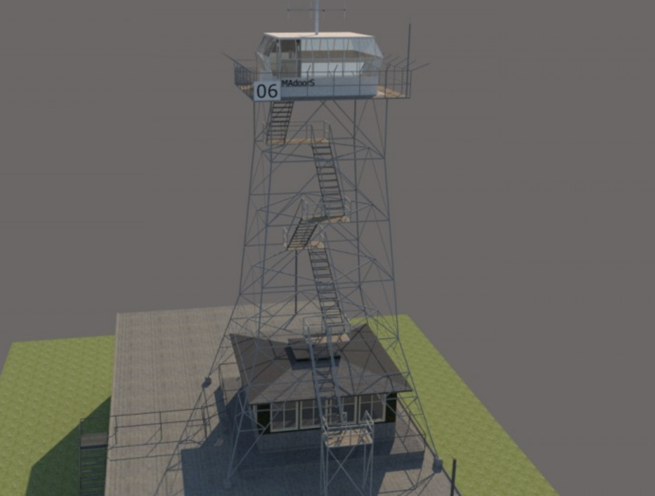

Platform Heights 3 to 10 Meters — Tower Above 10 Meters
Standard platform heights of 3, 4, 5, 6, 8, and 10 meters cover the full range of elevated guard booth and security tower applications at parking lots, border crossings, military bases, police installations, and perimeter security positions. Platforms above 10 meters are classified as towers, suited to military, correctional facility, and utility infrastructure applications requiring the extended observation range and superior sight line coverage over large perimeter areas that ground-level and low-elevation positions cannot provide.
Simple Installation Sequence — Bolt Down, Hoist, Connect
The installation sequence for a factory-assembled elevated platform and security booth is straightforward and rapid. The platform stand is offloaded from the transport vehicle and bolted down to the prepared concrete pad. The security booth is hoisted from the transport vehicle and set into the top rail of the platform stand, with bolts secured. The stairway is bolted to the stand. Electrical supply and low-voltage wiring are connected to complete the installation. This simple four-step sequence minimizes the on-site labor, equipment, and time required to achieve a fully operational elevated security tower position.
Installation on New or Existing Concrete Block Platform
Where an existing concrete block platform or elevated structure is already present at the installation location, the Madoors USA ballistic security booth can be installed directly on top of the existing platform — avoiding the need for a new platform structure and reducing installation cost and time for retro-fit security tower upgrades at existing facilities.
Standard Electrical System — DC/AC Inverter
The standard electrical system includes a safe DC/AC inverter, providing a reliable, self-contained power conversion capability for the booth's electrical loads — supporting operation from both DC battery supply and AC mains supply without requiring separate inverter procurement or installation.

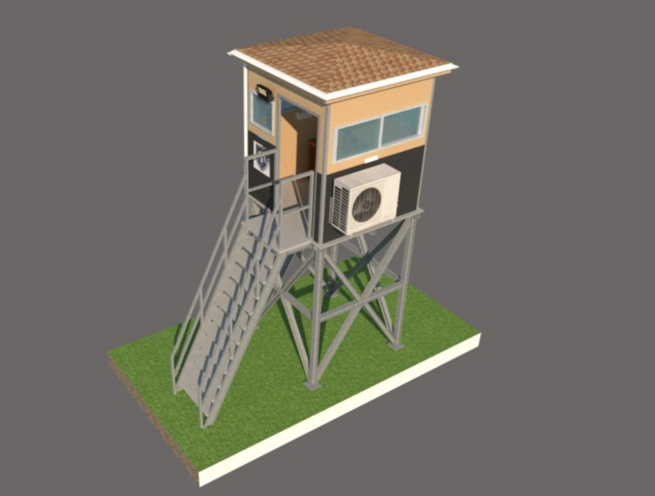

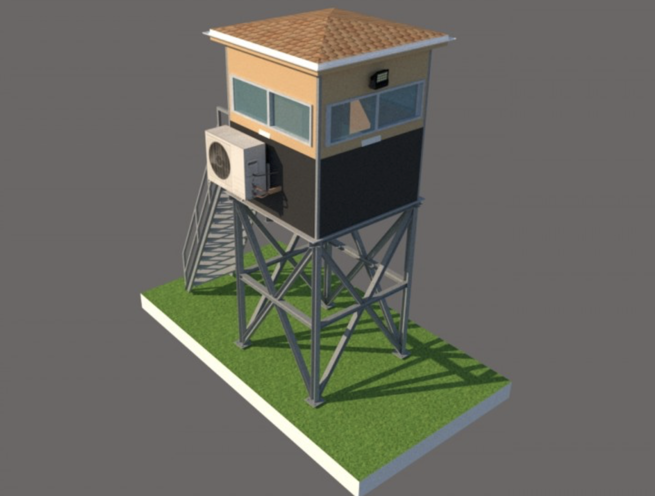

Split Air Conditioning — Optional
Optional split air conditioning maintains comfortable interior temperatures during extended security shifts in hot climate deployments — directly supporting personnel alertness, comfort, and operational effectiveness throughout the duty period in environments where heat stress would otherwise compromise security performance.
Anti-Sun Glare Windows — Optional
Optional anti-sun glare windows reduce solar glare at observation windows, maintaining clear visibility from the booth interior toward the protected area during high-angle sunlight conditions — eliminating the visibility impairment that unprotected glazing creates during early morning and late afternoon sun angles at outdoor security tower positions.

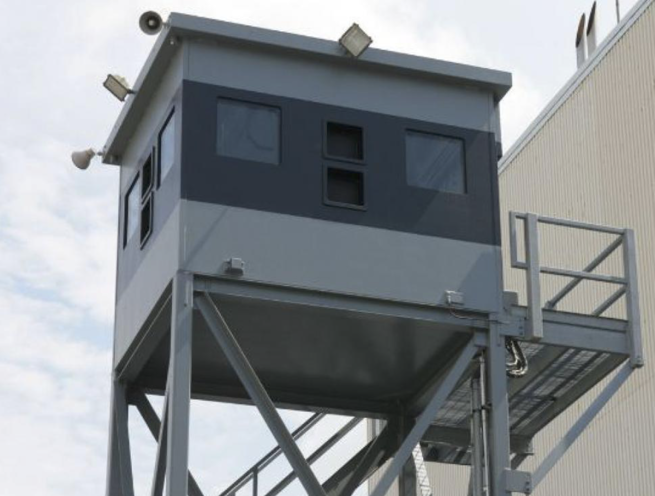

Projectors — Standard
Standard projectors provide exterior illumination from the elevated tower position, supporting nighttime observation and deterrence without requiring separate external lighting infrastructure at the tower base — extending effective observation capability to 24-hour operations.
Communications Equipment Shelf — Optional
An optional shelf for communications equipment provides a dedicated, stable mounting surface for radio equipment, intercoms, and surveillance monitors within the booth interior, keeping communications equipment organized and accessible throughout the duty period without occupying the limited workspace of the security booth floor area.
Suited for Perimeter, Parking, Border, Military & Traffic Gate Applications
The Madoors USA ballistic security tower booth is specifically identified for perimeter protection, large-area parking lot security, border control positions, military and police installations, and truck traffic gates — covering the primary elevated security observation and access control applications encountered across defense, law enforcement, and industrial security deployments.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Tower Configuration
Installation location, required platform height, sight line requirements, booth dimensions, security level specification, and optional upgrade requirements are confirmed. New platform or existing structure installation is confirmed. Concrete pad condition and anchor bolt position layout are assessed.
Concrete Pad Preparation & Anchor Bolt Installation
The level concrete pad is prepared or verified at the installation location. Anchor bolt positions for the platform stand base are drilled and set to the platform engineering drawing dimensions. Anchor bolt setting is verified for correct position, depth, and alignment before platform installation proceeds.
Factory-Assembled Platform Stand Installation
The factory-assembled platform stand is offloaded from the transport vehicle using crane or forklift equipment. The stand is positioned over the installed anchor bolts, lowered onto the concrete pad, and bolted down. Platform level and structural alignment are verified before booth installation proceeds.
Security Booth Hoisting & Installation
The ballistic security booth is hoisted from the transport vehicle using crane equipment and positioned above the platform top rail. The booth is lowered into the top rail of the platform stand and set in position. Booth-to-platform fixing bolts are installed and secured. Booth level and structural connection integrity are verified.
Stairway Installation
The stairway is bolted to the platform stand at the specified stairway attachment positions. Stairway alignment, handrail installation, and step surface condition are verified. Stairway structural connection to the platform is confirmed at all fixing points.
Electrical & Low-Voltage Wiring Connection
Electrical supply is connected to the booth's standard DC/AC inverter system. Low-voltage wiring for communications equipment, projectors, and optional split air conditioning is connected and routed. All electrical connections are tested and verified.
Optional Upgrade Installation & Commissioning
Split air conditioning, anti-sun glare window installation, projector mounting and alignment, and communications equipment shelf installation are completed where specified. All optional systems are commissioned and verified for correct operation.
Final Inspection & Operational Handover
Ballistic steel integrity, structural connection at all platform joints, stairway safety, electrical system operation, and all optional upgrade functions are inspected and verified. The completed security tower is confirmed operational and installation handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Ballistic Security Tower Guard Booths are specified for any security observation position where elevated sight lines, ballistic protection, and operational self-sufficiency are simultaneously required.
- Military base perimeter observation and guard towers
- Border control and customs crossing elevated security positions
- Prison and correctional facility perimeter guard towers
- Police installation and checkpoint elevated observation posts
- Large parking lot security and surveillance towers
- Industrial facility and petrochemical plant perimeter towers
- Port and maritime terminal perimeter observation towers
- Airport perimeter and airside security observation positions
- Truck traffic gate and weighbridge control towers
- Power station and utility infrastructure perimeter security towers
- Military correctional facility guard tower installations
- Construction site security and surveillance elevated positions
- Event security elevated observation and surveillance towers
- Critical infrastructure perimeter elevated security positions
- Category: Armored Guard Booths
