Please provide your technical specifications and project requirements for the Ballistic Guard Booth - Bulletproof Guard Shack. Our engineers will review your application and provide a detailed manufacturing quote, including exact pricing and lead times.

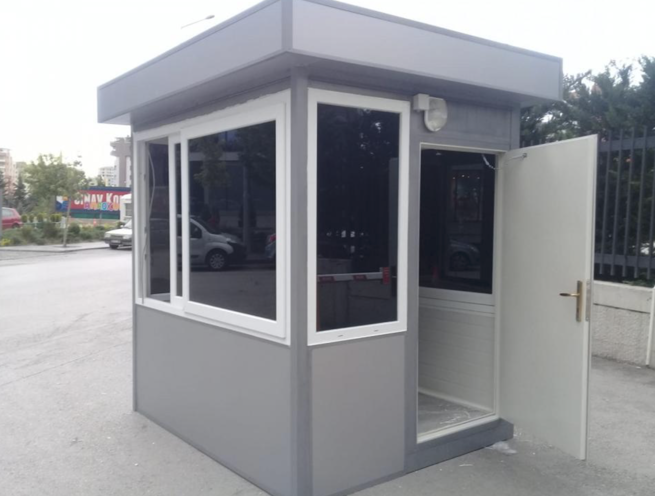

The Madoors USA Ballistic Guard Booth and Bulletproof Guard Shack provides certified bullet-resistant protection for security officers, parking lot attendants, ticket sellers, cash handlers, and general personnel in high-threat environments — engineered to protect occupants against weapons from 9mm handguns through automatic assault weapons utilizing armor-piercing bullets, certified to UL Level 8 and NIJ Level 4 and higher, with explosive blast load engineering capability. Installable on concrete slab, on overbuilt trailers for mobility, or on structural steel towers up to 40 feet high, with standing seam hip roof for lobbed explosive shedding, standard lifting rings in every roof, and an extensive option list including gun ports, reflective glass, transaction drawers, intercoms, battery backup, generator, dimmable and red interior lighting, exterior flood lights, cash handling equipment, anti-fatigue floor mats, and custom work counters — the Madoors USA Ballistic Guard Booth is the complete protection, functionality, and mobility solution for any security checkpoint, parking facility, border control, military installation, government facility, or commercial high-security application.
TECHNICAL SPECIFICATIONS
The Madoors USA Ballistic Guard Booth is engineered to UL Level 8 certification — the American UL 752 standard's highest classification for bullet-resistant glazing and construction, providing protection against multiple shots from high-powered rifles including 7.62mm NATO. NIJ Level 4 certification confirms protection against armor-piercing rifle ammunition including 7.62×63 AP M2 — the highest available NIJ standard protection level. Higher than NIJ Level 4 engineering is available for project-specific threat assessments requiring protection beyond the standard NIJ classification.
Explosive blast load engineering capability allows the guard booth to be specified and engineered for facilities where explosive blast threats are present alongside ballistic threats — the structural design is analyzed against the specified blast overpressure and dynamic loading, and the construction is engineered to maintain structural integrity and occupant protection through the blast event.

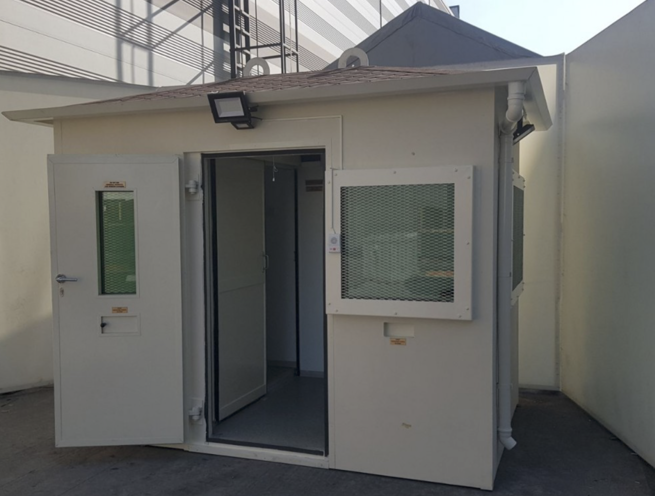

The standing seam hip roof design provides the geometry required for lobbed explosive shedding — the angled hip roof surfaces deflect grenades, explosive devices, and other lobbed threats away from the booth before detonation, directly reducing the blast loading on the booth structure and occupants. This roof geometry is the specific design feature for facilities where thrown or lobbed explosive attack is a credible threat.

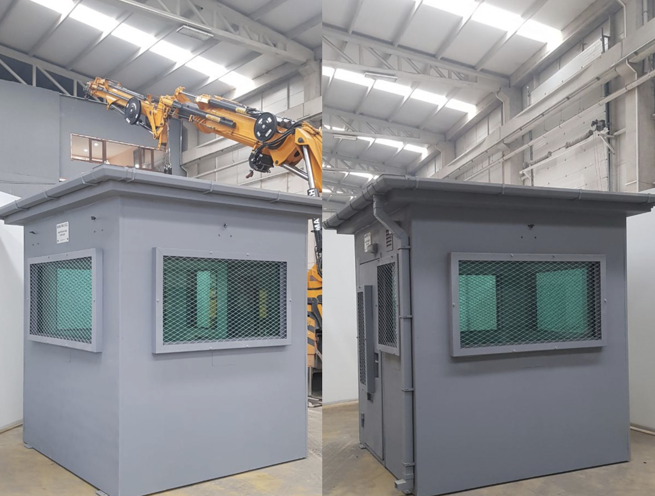

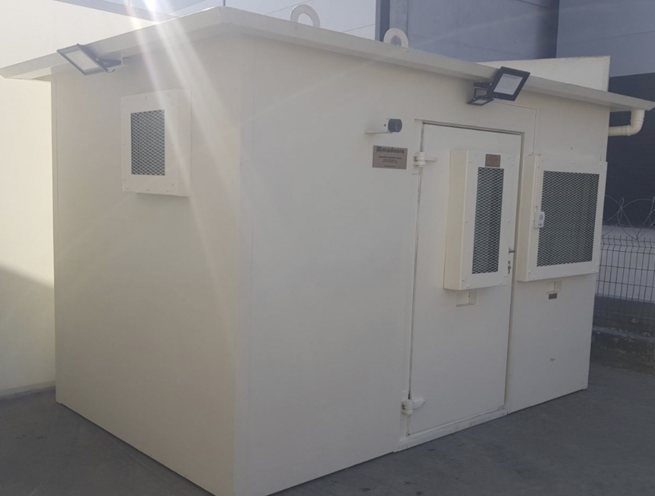

Lifting rings in the roof of every Madoors USA ballistic guard booth allow crane lifting of the complete booth as a single unit — for installation on structural steel towers, for relocation between positions, and for transport on flatbed vehicles. This lifting capability directly enables the flexible deployment of the booth across multiple installation scenarios without disassembly.
Tower installation up to 40 feet high on structural steel support provides the elevated security position required for maximum surveillance range — the 40-foot height provides direct line-of-sight to large facility perimeters, parking areas, and vehicle approach routes that ground-level guard positions cannot observe. Structural steel tower design is engineered for the combined booth weight, wind loading, and any dynamic loading from the tower height.
Trailer mounting on overbuilt trailer platforms provides complete booth mobility — the booth can be relocated to any road-accessible position by any standard tow vehicle, directly enabling temporary security checkpoint establishment and security position repositioning as the operational requirement changes.
KEY FEATURES
UL Level 8 & NIJ Level 4+ — Maximum Certified Ballistic Protection
The UL Level 8 and NIJ Level 4 and higher dual certification provides the two primary American ballistic protection standard credentials required for security checkpoint, military, and government facility procurement — UL 752 Level 8 for commercial and institutional security applications, and NIJ Level 4 for law enforcement and government security specification. The higher-than-Level-4 engineering capability directly addresses the specific threat assessments that exceed the standard NIJ classification, providing custom-engineered protection for the most demanding security environments.
9mm to Armor-Piercing Rifle — Complete Threat Spectrum
The protection range from 9mm handgun through automatic assault weapons to armor-piercing rifle ammunition covers the complete spectrum of ballistic threats encountered at security checkpoints, border control, military installations, and government facilities — a single Madoors USA guard booth specification addresses all threat levels from the least to the most severe ballistic attack scenarios. This complete threat coverage eliminates the risk of underspecification at facilities where the complete threat spectrum must be addressed from a single installation.
Three Installation Configurations — Ground, Mobile & Tower
The three installation configurations — concrete slab, overbuilt trailer for mobility, and structural steel tower up to 40 feet — provide the deployment flexibility required for the complete range of guard booth applications. Permanent fixed security checkpoints use the concrete slab installation for the most stable, cost-effective permanent installation. Mobile and temporary checkpoint applications use the trailer mounting for rapid repositioning. Elevated surveillance and security command positions use the tower installation for maximum observation range. This configuration flexibility allows the same Madoors USA guard booth to serve permanent, mobile, and elevated applications.
Standing Seam Hip Roof — Lobbed Explosive Shedding
The standing seam hip roof geometry that sheds lobbed explosives provides the physical protection function against thrown grenade, explosive device, and incendiary attack that flat-roof guard booths cannot provide. The hip roof's four angled surfaces deflect any object landing on the roof away from the booth structure before detonation — directly reducing the blast loading from surface detonation compared to a flat-roof booth where the explosive remains on the roof surface at the point of detonation. This roof design is the specific specification requirement for facilities with confirmed or suspected explosive device attack threat.
Extensive Option List — Complete Operational Functionality
The extensive option list — gun ports, reflective glass, transaction drawers, deal trays, cash handling equipment, intercoms, battery backup, generator, dimmable lighting, red lighting, exterior flood lights, additional outlets, phone and data preps, anti-fatigue floor mats, directional lighting, and signage — provides the complete operational functionality required for any security checkpoint, parking, ticketing, or cash handling application from a single booth installation. This comprehensive option integration directly eliminates the need for supplementary equipment procurement alongside the booth itself.
Reflective Glass — Occupant Concealment

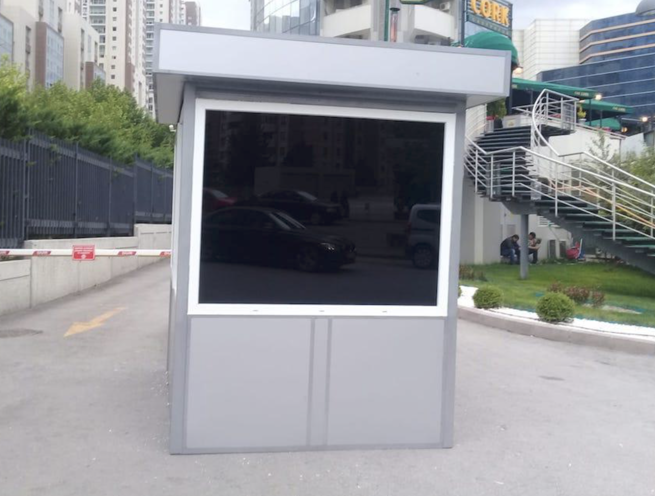

The reflective glass option prevents observation of the booth interior from the outside — persons approaching the booth cannot see how many occupants are present, whether weapons are drawn, or what equipment is being operated inside. This occupant concealment directly provides the tactical security advantage of preventing threat actors from planning their approach based on interior observation.
Gun Ports — Armed Response Without Exposure
The gun port option allows booth occupants to engage external threats through dedicated firing apertures without opening the booth or exposing any body part to the external threat environment. The gun port provides the weapon-aiming aperture at the designed firing position while maintaining the full ballistic protection of the booth construction at all other surfaces — directly enabling armed response from complete protection.
Tower Mounting to 40 Feet — Maximum Surveillance Range
The structural steel tower mounting up to 40 feet provides the elevated position for maximum surveillance range — at 40 feet, the direct line-of-sight distance to the perimeter of a parking lot, facility, or installation is dramatically greater than from a ground-level position. This elevated surveillance advantage is the primary operational benefit of tower mounting for large facility security management, perimeter monitoring, and vehicle approach control.
Custom Color & Textured Satin Finish — Location Integration
The standard single customer-specified color with textured satin finish and the design enhancement options for special location requirements allow the Madoors USA guard booth to be specified for the most architecturally sensitive installation positions — matching the surrounding building colors, the facility's branding, or the architectural character of the location — without the institutional appearance that standard security booth designs present. This appearance flexibility directly enables ballistic protection to be provided at locations where visual integration with the surrounding environment is a specification requirement alongside security performance.
OPTION CONFIGURATIONS
Security Checkpoint Configuration — Gun ports, reflective glass, intercoms, transaction drawers, additional doors, exterior flood lights, battery backup, generator.
Parking & Ticketing Configuration — Transaction drawers, deal trays, cash handling equipment, reflective glass, custom work counters, anti-fatigue floor mats, directional lighting, phone and data preps.
Mobile Checkpoint Configuration — Overbuilt trailer mounting, battery backup, generator, all standard security options on mobile platform.
Elevated Tower Configuration — Structural steel tower up to 40 feet, complete ballistic protection, all operational options, exterior flood lights for nighttime surveillance.
Cash Handling Configuration — Transaction drawers, deal trays, cash handling equipment, intercoms, reflective glass, anti-fatigue floor mats, custom work counters.
ASSEMBLY & INSTALLATION SEQUENCE
Threat Assessment & Configuration Selection
Ballistic threat level — UL Level 8, NIJ Level 4, or higher — explosive blast requirement, installation type — concrete slab, trailer, or tower — option list, custom color, and any special location design requirement are confirmed.
Foundation or Tower Installation
Concrete slab is poured to the booth footprint dimensions for ground installation. Structural steel tower is erected to the specified height for elevated installation. Overbuilt trailer is prepared for mobile installation.

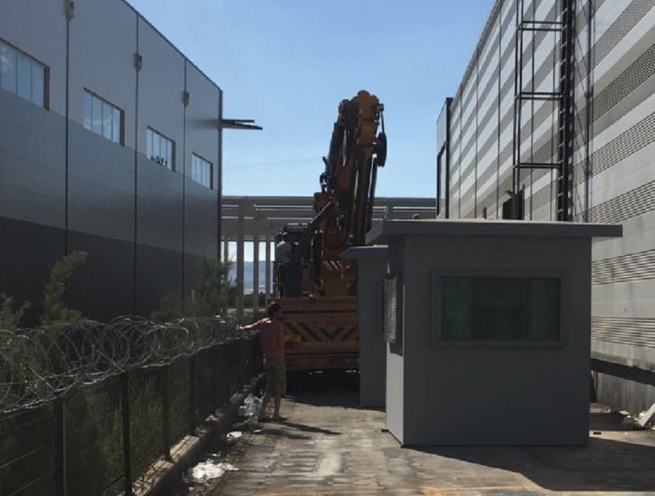

Booth Delivery & Crane Placement
The complete Madoors USA ballistic guard booth is delivered and placed on the foundation, tower, or trailer using the standard roof lifting rings and crane. Level and structural connection are confirmed.
Utility Connection
Electrical supply, battery backup system, generator, phone, data, and any other utility connections are made. All interior and exterior lighting, outlets, and communication systems are confirmed operational.
Security & Transaction Equipment Installation
Transaction drawers, deal trays, cash handling equipment, intercoms, gun ports, reflective glass, and any remaining option equipment are installed and operational function is confirmed.
Certification Documentation & Handover
UL Level 8 and NIJ Level 4 certification documentation, explosive blast engineering analysis where specified, custom configuration records, and operational guide are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Ballistic Guard Booths are specified for any security checkpoint or personnel protection position requiring certified ballistic and blast-resistant enclosure.
