Automatic Parking Pay Point

Automatic Parking Pay Point

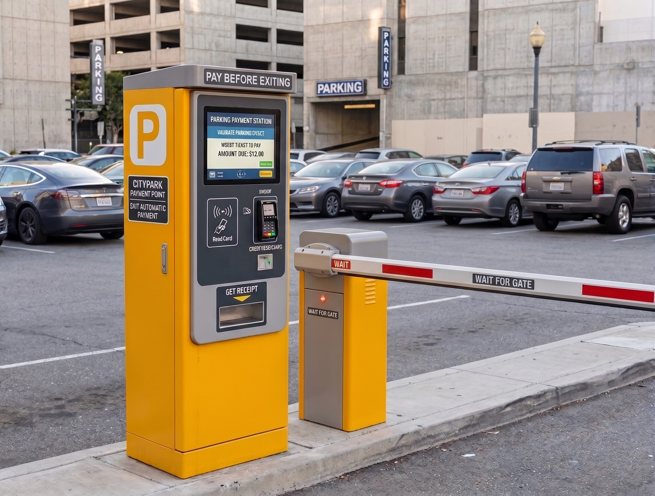

The Madoors USA Automatic Parking Pay Point is a complete parking fee automation system developed by Madoors USA engineers — combining ticket dispensing with barcode printing at entry, automatic barrier control via loop detectors and U-type sensors, cashierless fee payment kiosks accepting credit card and cash with optional change dispensing and foreign currency recognition, barcode payment machine at exit with automatic hourly rate calculation and receipt printing, RFID tag reader antenna integration, and automatic license plate recognition. The complete end-to-end cashierless parking management system prevents ticket sharing, unauthorized tailgating entry, and payment evasion — with automatic re-billing for vehicles that do not exit within the permitted time after ticket validation.

TECHNICAL SPECIFICATIONS
The Madoors USA Automatic Parking Pay Point system operates through an integrated sequence of hardware and software components managed by the proprietary parking automation software developed by Madoors USA engineers.

At the entry position, the vehicle approaches the ticket dispenser and is detected by the buried loop detector — the loop detector detects vehicle metal mass and sends the vehicle arrival signal to the system. Ticket dispensing is only enabled after vehicle detection — preventing ticket dispensing before a vehicle arrives, which would allow queue jumping and ticket accumulation. The driver presses the button and receives the ticket with the entry date and time encoded as a barcode. U-type sensors confirm that the ticket has been taken from the dispenser and send the open command to the entry arm barrier. After the vehicle passes through the barrier, the loop detector in the axis of the arm barrier confirms vehicle clearance and immediately commands the barrier to close — preventing a second vehicle from following through without a ticket.

At the payment point — positioned inside the parking facility before the exit — the driver inserts their barcode ticket into the payment kiosk before returning to their vehicle. The payment machine reads the barcode, calculates the parking duration from the entry time stamp, and applies the hourly rate configured in the parking software. The charge is displayed on screen and the driver pays by credit card or cash. Cash payment options are configurable for the specific operator requirements — change dispensing or no-change, banknote recognition, coin operation, and foreign currency recognition are all selectable features. The system automatically cuts a payment receipt.

At the exit, the driver approaches the exit barrier with the validated paid ticket. The barcode reader at the exit barrier reads the ticket barcode — confirming payment status — and the arm barrier opens. The validated ticket is swallowed into the exit cabinet, preventing re-use. If the vehicle does not exit the parking within 10 minutes of ticket validation — as configured in the software — the system voids the validation and applies a penalty charge, requiring the driver to return to the payment kiosk for re-payment before the exit barrier will open.

RFID tag reader antenna integration provides the additional identification layer for season ticket holders, subscription parkers, and vehicle fleet management — RFID-identified vehicles can be managed by the system without ticket dispensing, with automatic entry and exit barrier activation on RFID tag detection. License plate recognition integration provides the vehicle identity recording required for enforcement management and ticketless access for registered plates.

KEY FEATURES
Loop Detector Vehicle Detection — Anti-Queue-Jump Ticket Control
The loop detector buried at the ticket dispenser position that enables ticket dispensing only after vehicle detection directly prevents the ticket accumulation and queue-jumping that allow multiple tickets to be obtained without vehicles — a common payment evasion method at undetected ticket dispensers. This vehicle-confirmed dispensing ensures that every ticket issued corresponds to a vehicle entering the parking facility, maintaining the integrity of the occupancy and revenue accounting.

U-Type Sensor Barrier Trigger — Ticket Confirmation Opening
The U-type sensor confirmation that the ticket has been physically removed from the dispenser before sending the open command to the entry barrier ensures that the barrier opens only after the driver has actually taken the ticket — preventing barrier opening from the vehicle detection alone which would allow entry without ticket collection. This confirmed ticket collection trigger directly ensures that every entering vehicle has a ticket with the correct entry timestamp for accurate duration calculation.

Post-Vehicle Loop Detector — Tailgate Prevention
The loop detector buried in the axis of the arm barrier that commands immediate barrier closure after the detected vehicle clears provides the anti-tailgating function — the barrier closes before a following vehicle without a ticket can pass through. This immediate post-vehicle closure directly prevents the unauthorized entry method of following a ticketed vehicle through the open barrier, maintaining the revenue integrity of the cashierless ticketed parking system.

Cashierless Automatic Pay Station — Multiple Payment Methods
The cashierless automatic fee payment kiosk with credit card, cash, change dispensing, banknote recognition, coin operation, and foreign currency recognition options provides the complete payment infrastructure for unattended parking operation — the parking facility operates without cashier staff at any point in the payment sequence. This cashierless operation directly reduces the staffing cost of the parking facility while providing the payment method flexibility required for the diverse payment preferences of modern parking users.

Automatic Hourly Rate Calculation — Software-Configured Pricing
The automatic hourly rate calculation from the barcode entry timestamp to the payment presentation time provides accurate, consistent duration billing without manual calculation or staff interpretation — the software applies the configured hourly rate to the exact parking duration and presents the charge to the driver with no ambiguity or dispute potential. The software-configured rate allows the parking operator to set different rates for different time periods, vehicle types, and promotional periods through the parking software interface.

10-Minute Exit Window & Re-Billing Penalty
The 10-minute exit window after ticket validation — with automatic penalty re-billing if the driver does not exit within the window — provides the enforcement mechanism that prevents validated tickets from being shared between drivers or used to allow extended dwell time after payment. The re-billing penalty and invitation to the payment kiosk directly close the payment evasion loophole of validating a ticket but not exiting, and the configurable penalty amount allows the operator to set an appropriate deterrent charge for the specific parking facility.

RFID Tag & License Plate Recognition Integration
The RFID tag reader and license plate recognition integration provides the complete vehicle identification infrastructure for the full range of parking management functions — cashierless entry and exit for season ticket holders identified by RFID, enforcement matching of license plates against unpaid ticket records, fleet management of corporate vehicle access, and VIP or disabled badge holder management. These integrations transform the basic ticketed parking system into a comprehensive vehicle access management platform.

Swallowing Exit Ticket Cabinet — Re-Use Prevention
The exit cabinet that swallows the validated paid ticket on exit barrier activation prevents ticket re-use — the physical destruction of the ticket at exit ensures that a paid ticket cannot be retained by the driver and passed to another driver for fraudulent use. This ticket destruction directly closes the re-use evasion method and maintains the revenue integrity of the ticketed system.

SYSTEM COMPONENTS
Entry Ticket Dispenser
Loop detector vehicle detection, button-operated ticket dispensing, barcode entry timestamp printing, U-type sensor ticket removal confirmation, arm barrier open command.

Entry Arm Barrier
Barrier arm, loop detector post-vehicle closure trigger, tailgate prevention.

Payment Kiosk
Barcode scanner, duration calculation display, credit card terminal, cash acceptor with configurable options, receipt printer.

Exit Barrier Cabinet
Barcode reader, payment validation confirmation, ticket swallow mechanism, arm barrier open command.

Parking Management Software
Hourly rate configuration, payment records, vehicle occupancy, duration reporting, 10-minute exit window enforcement, penalty billing, RFID and plate recognition integration.

Optional
RFID tag reader antennas for season ticket entry/exit, license plate recognition cameras, remote monitoring connection.

ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & System Configuration
Entry and exit lane positions, loop detector burial positions, payment kiosk locations inside the facility, RFID antenna positions, license plate camera positions, power supply routing, and software rate configuration are confirmed.

Loop Detector Installation
Buried loop detectors are installed at the entry ticket dispenser position, entry arm barrier axis, and exit barrier position. Loop detector cable routing to the control system is completed.

Entry Ticket Dispenser & Arm Barrier Installation
Entry ticket dispenser is installed at the confirmed entry lane position. U-type sensor and arm barrier are installed. Barrier open/close coordination with ticket removal confirmation is tested.

Payment Kiosk Installation
Payment kiosk is installed at the confirmed indoor payment position. Credit card terminal, cash acceptor, receipt printer, and barcode scanner are installed and commissioned. Payment method configuration — change, banknote, coin, foreign currency — is set.

Exit Cabinet & Barrier Installation
Exit barcode reader cabinet with ticket swallow mechanism and exit arm barrier are installed. Payment validation confirmation barrier opening and ticket swallow are tested.

Software Configuration & Rate Programming
Parking management software is installed and configured — hourly rates, 10-minute exit window, penalty charge, RFID integration, and license plate recognition are programmed.

Complete System Flow Testing
Full entry-to-exit test cycle — vehicle detection, ticket dispensing, entry barrier, payment calculation, kiosk payment, exit validation, barrier opening, and ticket swallowing — is tested. Tailgate prevention, 10-minute re-billing, and RFID bypass are confirmed.

Operational Handover & Staff Training
Parking software management training for rate changes, occupancy monitoring, and payment reporting is completed. Installation handover documentation is provided.

DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Automatic Parking Pay Points are specified for any parking facility requiring cashierless automated fee management.

• Commercial shopping center and retail park parking
• Hospital and healthcare facility visitor parking management
• Airport short and long-stay parking fee automation
• Hotel and hospitality property guest parking system
• Corporate headquarters employee and visitor parking
• University and educational campus parking management
• Government building and ministry visitor parking
• Sports stadium and event venue parking fee system
• Cinema and entertainment venue parking automation
• Supermarket and retail store customer parking system
• Railway station and transit hub commuter parking
• Office park and business campus parking management
• Municipal and city center public parking automation
• Hotel and resort guest parking fee management
• Any parking facility requiring cashierless automatic barrier-controlled fee payment with loop detector tailgate prevention
