Automatic Motorized Flag Pole
The Madoors USA Automatic Motorized Flag Pole is a stainless steel AISI 304 or AISI 316 internally motorized flagpole system — available from 3 meters to 35 meters height with 2mm to 8mm material thickness matched to pole height — featuring an internally hidden motor and automatic control panel, internal rope mechanism, 360-degree endless crown rotary system preventing flag tangling in any wind direction, stainless flag fixing bars for stylish flag retention, remote control operation from 50 meters distance, and hardwired operating button ready in the pole with 6-meter cable extension. With a 2-year system warranty and 10-year spare parts support, stainless flange base with decorative badge, anchor foundation fixing, and AISI 316 option for maximum coastal and marine corrosion resistance, the Madoors USA Automatic Motorized Flag Pole is the definitive certified quality flagpole for government buildings, military installations, corporate headquarters, embassies, and any prestigious location requiring automatic flag hoisting without tilting or detaching the pole.
TECHNICAL SPECIFICATIONS
The Madoors USA Automatic Motorized Flag Pole is manufactured from AISI 304 stainless steel as standard — the 304 chrome-nickel composition provides corrosion resistance for outdoor installation in all standard environments. AISI 316 stainless steel with molybdenum addition is available for the highest corrosion resistance in coastal, marine, and chemically aggressive environments where 304 would be subject to accelerated chloride-induced corrosion. Galvanized pipe construction is available for applications where the standard corrosion protection of hot-dip galvanization is the specified requirement.
Material thickness varies with pole height — from 2mm minimum for the shortest poles to 8mm maximum for the tallest poles — providing the structural rigidity and wind load resistance appropriate for each height. The structural design is engineered by Madoors USA project engineers for each height specification, ensuring that the pole section, wall thickness, and base flange dimensions are matched to the wind loading and self-weight bending moment of each specific height.

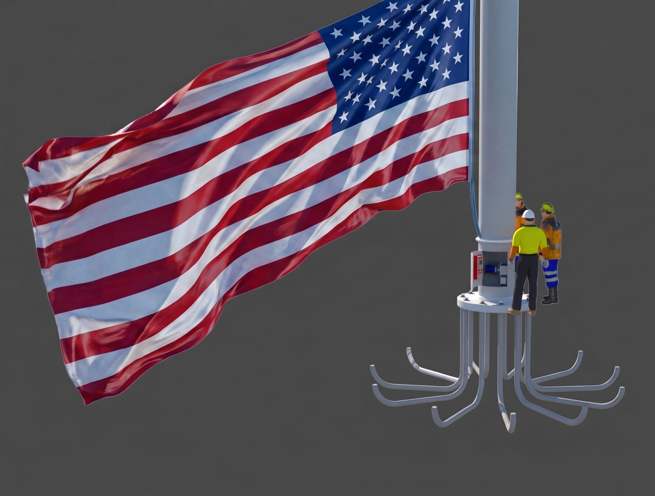

The motor and automatic control panel are completely hidden inside the pole — the external appearance of the Madoors USA motorized flagpole is identical to a standard static flagpole with no visible external motor housing, control cabinet, or mechanism. The internal rope mechanism is also concealed within the pole — the flag is attached to the internal rope system at the top of the pole and raised or lowered by the internal motor drive without any external rope visible on the pole exterior. This concealed mechanism directly provides the clean, prestigious aesthetic required for ceremonial flagpoles at government, military, and corporate installations.
The 360-degree endless rotary crown mechanism at the top of the pole allows the flag attachment ring to rotate freely in any direction without limit — when the wind changes direction, the flag rotates with the wind rather than wrapping around the pole or pulling against a fixed attachment. This endless rotation directly extends the service life of the flag cloth by eliminating the tearing and abrasion that fixed attachment flags experience at the attachment point when wind direction reverses. The flag continues flying even in light winds because the low-friction rotary mechanism offers minimal resistance to the flag's natural wind response.
Remote control operation is provided with 4-system remote control buttons operating within a 50-meter range — the flag can be raised or lowered from any position within 50 meters of the pole without approaching the base. The hardwired operating button is installed ready in the pole with a 6-meter cable extension for fixed-position operation from the building entrance or security post.

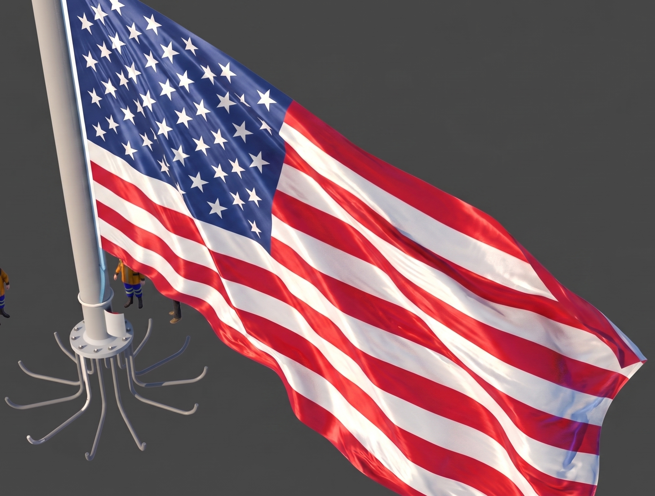

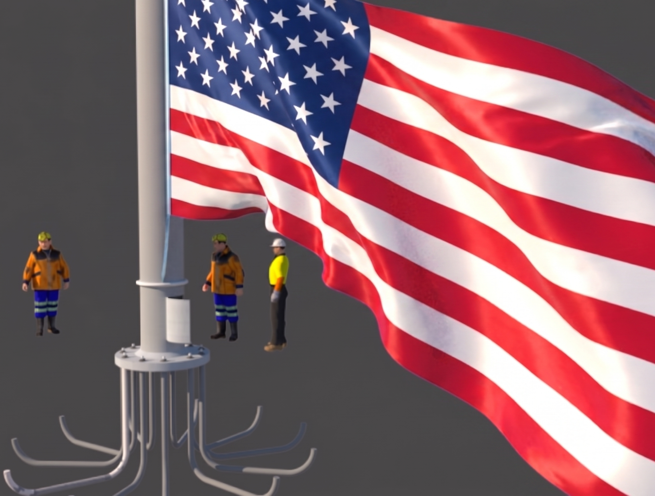

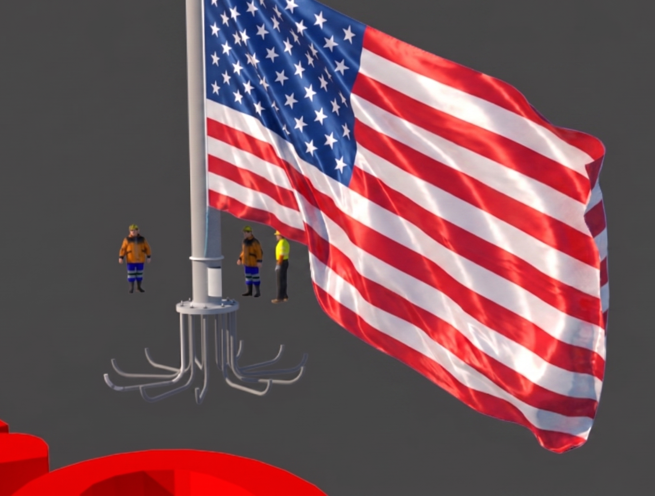

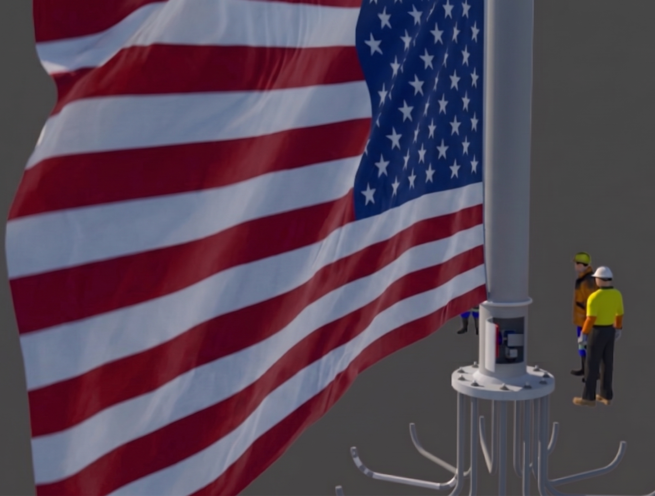

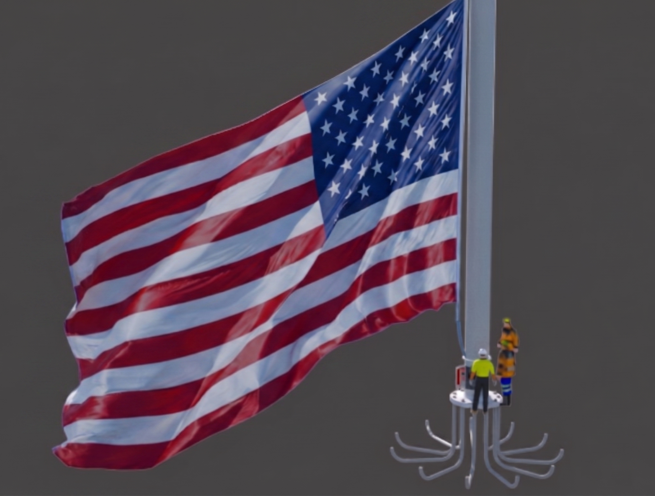

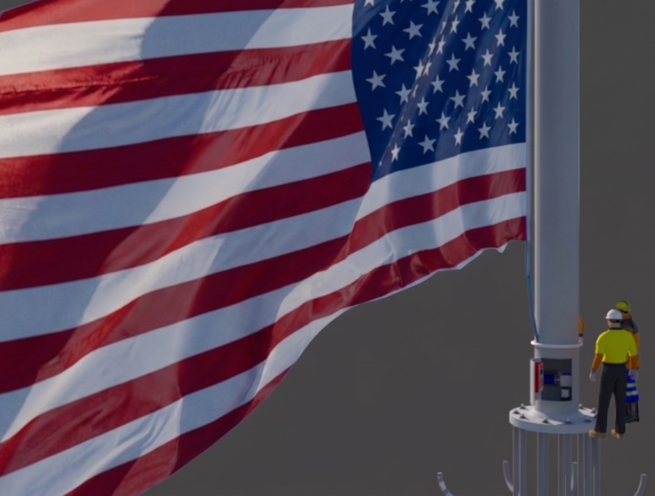

The flagpole foundation is fixed using anchors — the base flange is anchored to the concrete foundation with the structural connection required for the pole height and design wind load. The decorative badge closes the flange, providing the finished aesthetic appearance at the pole base.
KEY FEATURES
Internally Hidden Motor & Control — Premium Aesthetic
The complete concealment of the motor, control panel, and rope mechanism inside the pole body provides the uninterrupted clean aesthetic of a standard static flagpole at prestigious ceremonial locations — no external motor housing, no visible control cabinet, and no external rope detract from the visual quality of the installation. This internal concealment is the essential aesthetic requirement for flagpoles at government ministries, presidential buildings, military headquarters, embassies, and corporate headquarters where the flagpole is a prominent visual element of the building entrance.
360-Degree Endless Crown Rotary — Flag Life Extension
The 360-degree endless rotary mechanism at the crown that allows the flag to rotate freely with the wind direction directly extends the operational service life of the flag cloth — flags on fixed attachment poles wrap around the pole when wind direction changes, creating tearing stress at the attachment points and preventing the flag from flying properly in light or variable winds. The endless rotation eliminates both failure modes, maintaining proper flag display in all wind conditions and directly reducing the flag replacement cost over the pole's service life.
3 to 35-Meter Height Range — Any Installation Requirement
The 3 to 35-meter height range covers every flagpole application from small entrance flagpoles at business premises through to the large ceremonial flagpoles at government plazas, military installations, and national monuments. Each height is engineered with the appropriate material thickness — 2mm to 8mm — and structural specification for the wind loading and self-weight of that specific height, providing reliable structural performance throughout the full height range.
Remote Control — 50-Meter Range, 4-System Buttons
The 50-meter remote control range allows the flag to be raised and lowered from any convenient position — the main building entrance, the security guard post, or any location within 50 meters of the flagpole without requiring physical approach to the pole base. The 4-system remote control buttons provide multiple operator control devices for the building's flag management staff. This remote operation directly enables the ceremonial raising and lowering of flags at the correct times without disrupting the building's public entrance activity.
AISI 304 & 316 Stainless Steel — Multi-Environment Corrosion Resistance
The AISI 304 standard specification provides corrosion resistance for the majority of outdoor installation environments. The AISI 316 option provides the enhanced chloride resistance required for coastal and marine environments where salt spray and tidal exposure would cause accelerated corrosion of 304. This material option range directly ensures that the correct stainless steel specification is available for any global installation environment without overspecifying the corrosion resistance for standard inland locations.
2-Year Warranty & 10-Year Spare Parts Support
The 2-year system warranty and 10-year spare parts support commitment provides the longest available after-sale support package for a motorized flagpole installation — the 2-year warranty covers the complete system including motor, control panel, mechanism, and structural components, and the 10-year spare parts support ensures that any component replacement required during the flagpole's full service life can be sourced from Madoors USA. This support commitment directly protects the flagpole investment throughout its operational service life.
Stainless Flag Fixing Bars — Stylish Flag Retention
The stainless steel flag fixing bars that ensure the flag is held in the correct position and kept stylish prevent the flag from bunching, twisting, or drooping at the attachment points — the fixing bars maintain the flag in the stretched, displayed configuration that presents the flag correctly from the full viewing distance. This stylish flag retention directly maintains the dignified, ceremonial presentation quality of the flag display throughout the pole's service life.
Internal Rope System — No External Rope Exposure
The internally routed rope system eliminates the external rope on the pole exterior that conventional manually operated flagpoles require — external ropes create the visual distraction of rope and cleat hardware on the pole surface, are subject to UV degradation and weather damage requiring regular replacement, and create noise from rope-against-pole contact in wind. The internal rope eliminates all three issues, providing the clean aesthetic and silent operation of the motorized system.
PRODUCT RANGE
3 to 6-Meter Motorized Flagpole
Entrance and small building applications. 2mm to 3mm wall thickness. AISI 304 standard, 316 optional.
8 to 15-Meter Motorized Flagpole
Standard commercial and institutional applications. 3mm to 5mm wall thickness. AISI 304 standard, 316 optional.
18 to 25-Meter Motorized Flagpole
Government, military, and corporate headquarters applications. 5mm to 7mm wall thickness. Project-engineered structural specification.
28 to 35-Meter Motorized Flagpole
National monument, plaza, and prominent landmark applications. 7mm to 8mm wall thickness. Full project engineering and structural calculation.
ASSEMBLY & INSTALLATION SEQUENCE
Site Assessment & Height Specification
Installation height, pole material — AISI 304, 316, or galvanized — foundation ground conditions, design wind speed, remote control positions, hardwired button routing, and flag size are confirmed. Project engineering calculation for the specified height and wind load is completed.
Foundation Concrete & Anchor Installation
Foundation excavation to the confirmed depth for the pole height and wind load is completed. Foundation concrete is poured with the base flange anchor bolts cast in position. Foundation cure time to the required compressive strength is completed.
Raising a Flagpole
The assembled pole with internal motor, control panel, rope mechanism, and crown rotary system is erected onto the foundation flange anchor bolts. Pole level and anchor bolt torque are confirmed.
Flange Decorative Badge Installation
The decorative badge is fitted over the base flange — completing the clean, finished appearance at the pole base.
Remote Control & Hardwired Button Commissioning
Remote control buttons are paired to the internal motor control panel. 50-meter range operation is confirmed. Hardwired button 6-meter cable extension is routed to the specified operating position.
Flag Attachment & Mechanism Testing
The flag is attached to the internal rope fixing bars. Complete raise to full height, lower to base, and 360-degree crown rotation in simulated wind are tested. Motor direction, speed, and limit switch stop at top and bottom are confirmed.
2-Year Warranty & 10-Year Spare Parts Documentation
Complete operational testing, installation certification, 2-year warranty documentation, and 10-year spare parts support registration are compiled into the project handover package.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Automatic Motorized Flag Poles are specified for any ceremonial, institutional, or commercial flagpole application requiring automatic internal motor operation.
- Government ministry and public building flagpoles
- Presidential and prime ministerial residence flagpoles
- Military base and headquarters ceremonial flagpoles
- Embassy and diplomatic mission flagpoles
- Corporate headquarters and business park flagpoles
- Hotel and hospitality property entrance flagpoles
- University and educational institution flagpoles
- Sports stadium and arena flagpoles
- Airport terminal and transport hub flagpoles
- Shopping center and retail complex entrance flagpoles
- National monument and plaza ceremonial flagpoles
- Port and maritime facility flagpoles
- Hospital and healthcare facility flagpoles
- Coastal and marine facility AISI 316 flagpoles
- Any prestigious or commercial location requiring automatic internal motor flagpole with 360-degree endless rotation
