Anti-Climb Security Fence Wire System
Madoors USA Anti-Climb Security Fence Wire Systems are high-security, anti-climbing perimeter fencing solutions engineered specifically for the protection of sensitive sites, prison environments, public administration facilities, embassies, military installations, and critical infrastructure perimeters. Manufactured with a minimum wire thickness of 5 to 6 mm, mesh spacing of 10 × 50 mm, and panel heights ranging from 150 cm to 300 cm, the Madoors USA anti-climb wire fence system combines the tight mesh geometry required to prevent finger and toe holds with the material strength required to resist cutting, bending, and sustained mechanical attack.
Post configurations are available in L-shape and Y-shape profiles to accommodate razor wire integration at the fence crown, providing a complete anti-climb and anti-intrusion perimeter solution from a single supplier. In addition to high-security anti-climb wire fencing, Madoors USA supplies chain link fencing for residential, commercial, and industrial applications — and offers full customization services for bespoke fencing requirements across any project type, size, or design specification.
TECHNICAL SPECIFICATIONS
Madoors USA Anti-Climb Security Fence Wire Systems are manufactured with the following core specifications as standard. Panel height ranges from 150 cm to 300 cm, covering standard perimeter security heights through to maximum deterrence installations. Minimum wire diameter is 5 to 6 mm, providing the tensile and shear strength required to resist manual cutting attempts with commonly available tools. Mesh spacing is 10 × 50 mm — a tight aperture geometry that eliminates usable finger and toe hold points across the entire fence face, making unassisted climbing physically impractical regardless of climber capability.
Posts are available in L-shape and Y-shape configurations. L-shape posts provide a clean vertical profile suitable for standard perimeter installations. Y-shape posts are designed to carry razor wire on the outward-projecting arms of the Y-profile at the fence crown, adding a high-deterrence razor wire barrier above the primary fence panel without requiring a separate topping structure. Post design and spacing are customized on a project basis to meet specific structural, height, and topping requirements.
The full Madoors USA wire fencing range covers anti-climb and anti-cut high-security wire fence systems, and chain link fencing for residential, commercial, and industrial applications. Custom fencing systems — including bespoke panel designs, non-standard dimensions, and specific material or coating specifications — are available through Madoors USA's engineering and manufacturing team.
KEY FEATURES
10 × 50 mm Mesh — No Foothold Geometry

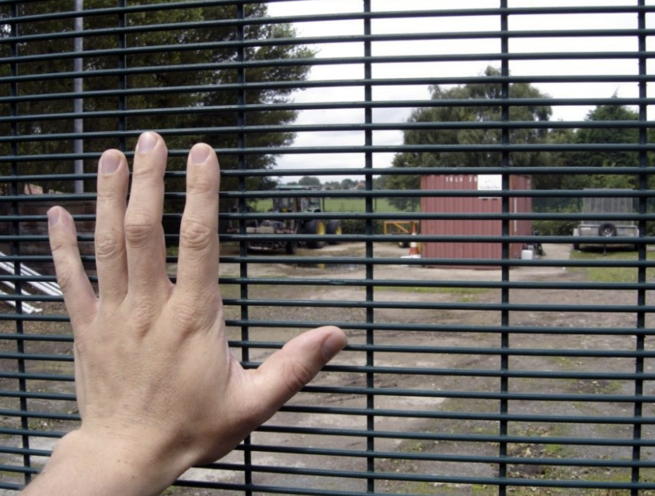

The 10 × 50 mm mesh aperture is the defining anti-climb characteristic of the system. The tight horizontal spacing of 10 mm eliminates all usable finger and toe hold points across the full fence face, making the mesh panel physically unclimbable without assisted equipment. This mesh geometry is the recognized standard for high-security anti-climb wire fence applications at prisons, embassies, and critical infrastructure perimeters.
5–6 mm Minimum Wire Diameter — Anti-Cut Resistance
The minimum wire diameter of 5 to 6 mm provides tensile and shear strength that resists cutting attempts with manually operated cutting tools. This anti-cut performance is a fundamental requirement for prison perimeters, embassy security fencing, and military installation boundaries where tool-assisted forced entry is a primary threat.
Panel Heights 150 cm to 300 cm
Standard panel heights cover 150 cm to 300 cm, allowing the fence height to be matched precisely to the deterrence and security specification of each site. Maximum 300 cm panel height provides a substantial physical and psychological deterrent in combination with the no-foothold mesh geometry and razor wire topping options.
L-Shape & Y-Shape Post Configurations

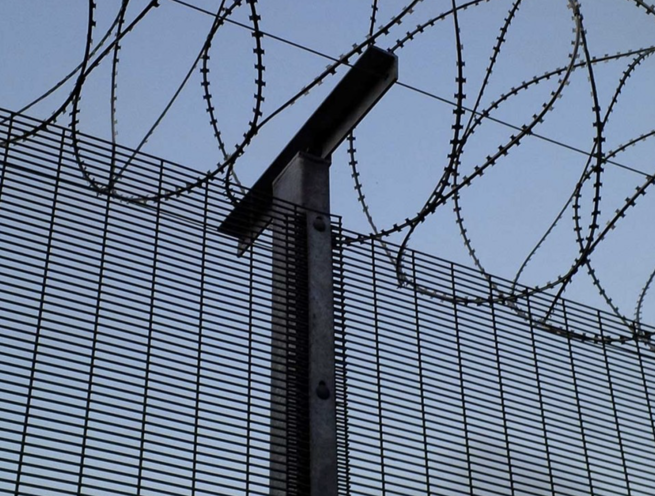

L-shape posts provide a standard vertical profile for clean perimeter installations. Y-shape posts are engineered with outward-projecting arms at the crown to carry razor wire above the primary fence panel, integrating the razor wire topping directly into the post structure and eliminating the need for separate topping brackets or frames. Post shape selection is made on a project basis to match the security specification and topping requirements of each installation.
Razor Wire Integration

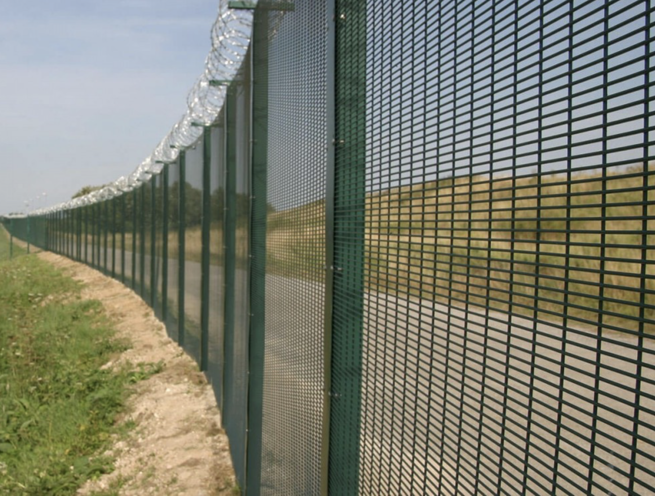

Y-shape post configurations are specifically designed to integrate razor wire at the fence crown, providing a combined anti-climb wire fence and razor wire topping system in a single coordinated structure. Razor wire integration significantly increases the deterrence and physical resistance of the perimeter at the most vulnerable point of any climbing attempt — the fence crown.
Anti-Climb & Anti-Cut Performance
The combination of 10 × 50 mm mesh geometry and 5 to 6 mm wire diameter delivers both anti-climb and anti-cut performance in a single fence panel — addressing the two primary mechanical attack methods used against security perimeter fencing simultaneously.
High-Security Applications — Prisons, Embassies & Sensitive Sites
The Madoors USA anti-climb wire fence system is specifically engineered for the most demanding perimeter security environments: prison perimeters where escape prevention is the primary requirement, embassy and diplomatic facility boundaries where forced entry prevention and anti-climb performance must meet government security standards, military installations requiring robust physical perimeter barriers, and public administration and critical infrastructure facilities requiring certified high-security fencing.
Chain Link Fencing — Residential, Commercial & Industrial
In addition to high-security anti-climb wire systems, Madoors USA supplies chain link fencing for residential garden and property boundary applications, commercial premises perimeter security, and industrial site fencing. Chain link fencing provides an effective, economical, and easy-to-install perimeter solution for applications where the extreme security specification of the anti-climb wire system is not required but reliable, durable boundary fencing is needed.
Custom Design & Bespoke Specifications
Madoors USA offers full customization services for fencing projects with unique design requirements, non-standard dimensions, or specific material and coating specifications. The Madoors USA engineering team works directly with clients to develop bespoke fencing systems that meet precise project requirements — whether the requirement is a unique panel design, a specific post spacing arrangement, a non-standard height, or a custom coating specification.
Versatile Application Across Sectors
The Madoors USA wire fence range covers residential, commercial, industrial, institutional, and high-security government applications — providing a consistent, single-supplier fencing solution across the full range of perimeter security requirements from garden boundary to prison perimeter.
PRODUCT RANGE OVERVIEW
Anti-Climb High-Security Wire Fence
Mesh: 10 × 50 mm. Wire diameter: 5–6 mm minimum. Panel height: 150–300 cm. Post options: L-shape and Y-shape with razor wire integration. Applications: Prisons, embassies, military installations, government facilities, critical infrastructure perimeters, sensitive site boundaries.
Anti-Cut High-Security Wire Fence
Wire diameter specification engineered to resist manual cutting tool attack. Applications: High-security perimeters where tool-assisted forced entry is a primary threat. Combined anti-climb and anti-cut performance available in a single panel specification.
Chain Link Fencing
Applications: Residential homes and garden boundaries, commercial premises perimeter fencing, industrial site and depot boundary fencing. Characteristics: Versatile, customizable, economical, easy to install.
Custom & Bespoke Fencing Systems
Available for any project requiring unique design, non-standard dimensions, specific material specifications, or tailored security performance parameters. Engineered and manufactured by Madoors USA to project-specific requirements.
ASSEMBLY & INSTALLATION SEQUENCE
Site Survey & Security Specification Review
The full perimeter line is surveyed and the security specification is reviewed — including required panel height, mesh specification, post type, razor wire topping requirement, and any underground barrier provisions needed to prevent dig-under attack. Custom dimension or bespoke design requirements are confirmed at this stage.
Post Foundation Excavation & Concrete Setting
Post foundation holes are excavated at the specified post spacing along the perimeter line. Concrete is poured and posts are set plumb and aligned. For Y-shape posts, outward arm orientation is set at the correct angle and direction during setting to ensure consistent razor wire carrier alignment across the full fence run.
Fence Panel Installation
Anti-climb wire fence panels are fitted between posts and secured with the specified panel fixing hardware. Panel alignment, level, and fixing integrity are verified across all sections including corners, grade changes, and gate openings.
Razor Wire Installation — Y-Shape Posts
Where Y-shape posts are installed, razor wire is fitted to the outward-projecting crown arms of the Y-profile posts, running continuously along the full fence crown. Razor wire fixing, tension, and continuity are verified across all post spans.
Gate & Access Point Installation
Security gates are installed at the specified access point locations. Gate frames, hinges, and heavy-duty locking hardware are fitted and verified for alignment and secure closure. Electronic access control infrastructure is installed at access points where specified.
Coating Inspection & Edge Treatment
All fence panels, post surfaces, fixing hardware, and razor wire fittings are inspected for coating integrity. Any site-cut wire ends or drilled fixing points are treated with compatible touch-up coating to restore anti-corrosion protection at exposed metal surfaces.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA Anti-Climb Security Fence Wire Systems are specified across the full range of high-security and standard perimeter fencing applications.
- Prison and correctional facility perimeter escape prevention fencing
- Embassy and diplomatic compound perimeter security
- Military base and installation perimeter fencing
- Government building and public administration facility boundaries
- Airport airside security perimeter fencing
- Power station and electrical substation perimeter security
- Water treatment and utility infrastructure perimeter fencing
- Data center and server facility perimeter security
- Petrochemical plant and refinery perimeter fencing
- Port and maritime terminal security perimeter
- Rail depot and transport infrastructure perimeter fencing
- Corporate campus and industrial estate perimeter security
- Residential estate and private property boundary chain link fencing
- Commercial premises and warehouse perimeter chain link fencing
