All Glass Revolving Doors

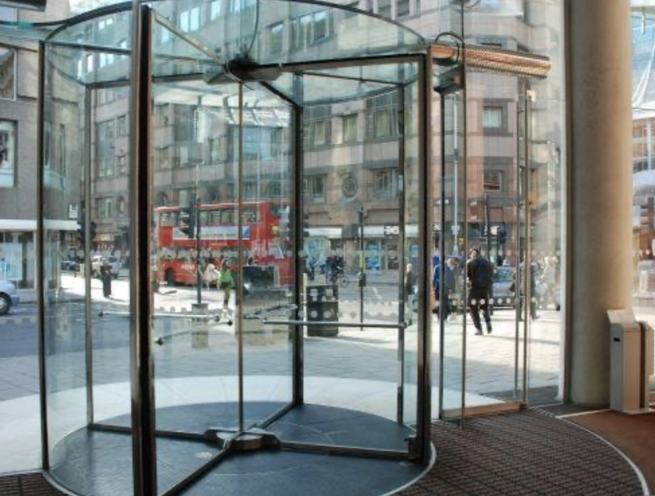

The Madoors USA All Glass Revolving Door is a manual and motorized frameless crystal revolving door system engineered for premium architectural building entrances where the entry experience must reflect and complement the quality of the facade it serves. Constructed virtually entirely from glass with stainless steel accents providing structural integrity, the Madoors USA crystal revolving door integrates seamlessly with modern all-glass building facades while delivering equal visual impact as a statement entrance element in traditional and classic architectural settings.
Available in completely clear glass or colored glass finishes, in three-wing and four-wing configurations, with collapsible door set options for emergency exit compliance, and in both manual and motorized operation variants, the system is fully configurable to meet the specific traffic volume, luggage handling, security, and architectural requirements of each project.
TECHNICAL SPECIFICATIONS
The Madoors USA All Glass Revolving Door is constructed from frameless glass panels with stainless steel accent components providing the structural connections and rotational hardware necessary for smooth, reliable revolving door operation. The frameless glass construction eliminates visible frame members from the primary glazed face, maintaining full visual transparency through the door body and preserving the unobstructed glass aesthetic of the building entrance.
The door is available in three-wing and four-wing configurations. Three-wing revolving doors provide a larger compartment size per section, accommodating visitors with briefcases, luggage, or wheeled equipment more comfortably. Four-wing doors provide higher throughput capacity for entrances with elevated daily visitor volumes, as the shorter compartment cycle time allows more passes per rotation. Wing count selection is determined by expected daily traffic volume and the typical size and luggage profile of users passing through the entrance.
A collapsible door set option is available, allowing the door wings to fold flat in an emergency, converting the revolving door opening into an unobstructed egress passage compliant with emergency exit requirements. This option is recommended for any installation where the revolving door serves as a primary or secondary emergency exit route.
Both manual and motorized operation variants are available. Motorized systems provide hands-free automatic rotation for high-traffic entrances and accessibility compliance. Manual systems are suited to lower-traffic applications or installations where a premium tactile entry experience is preferred.
KEY FEATURES
Frameless Crystal Glass Construction
The door is constructed virtually entirely from glass, with stainless steel accents used only at structural connection and hardware points. The frameless crystal glass body delivers the maximum possible visual transparency and the unobstructed glass aesthetic that defines premium architectural entrance design — complementing modern all-glass facades and providing a striking visual focal point in traditional and classic building settings.
Manual & Motorized Operation
The system is available in both manual and motorized operation configurations. Motorized variants provide fully automatic hands-free rotation suited to high-traffic public entrances, accessibility requirements, and premium hospitality environments. Manual variants deliver a refined tactile entry experience for lower-traffic or exclusive applications.
Three-Wing & Four-Wing Configurations
Three-wing configuration provides larger individual compartments for comfortable passage of visitors with luggage, briefcases, or wheeled equipment. Four-wing configuration increases rotational throughput capacity for high daily visitor volume entrances. Configuration selection is guided by expected traffic volume and user profile for each specific installation.
Collapsible Door Set — Emergency Exit Compliance
The collapsible door set option allows door wings to fold flat under emergency conditions, converting the revolving door opening into a clear egress passage. This option satisfies emergency exit compliance requirements for installations where the revolving door serves as a designated emergency exit route.
Clear & Colored Glass Options
The door is available in completely clear glass for maximum transparency and facade integration, or in a range of colored glass specifications to complement specific architectural color palettes, privacy requirements, or design intent.
Stainless Steel Accents
Structural connections and rotational hardware are finished in stainless steel, providing the material strength required for long-term revolving door operation while maintaining a visually minimal presence that does not interrupt the all-glass aesthetic of the door body.
Seamless Facade Integration
The frameless crystal revolving door integrates seamlessly with modern all-glass building facades, maintaining visual continuity between the entrance and the surrounding glazed facade without the visual interruption of conventional framed revolving door systems.
Architectural Statement in Traditional Settings
While optimized for modern glass facades, the crystal revolving door delivers equal visual impact as a design statement entrance element in traditional, heritage, and classic architectural settings — where the contrast between the all-glass revolving door and the surrounding masonry or stone facade creates a striking and memorable entry experience.
Custom Configuration Support Madoors USA works directly with architects, designers, and building owners to configure the revolving door system to meet all project-specific requirements — including wing count, glazing specification, operation mode, emergency exit compliance, and integration with the surrounding entrance wall assembly.
ASSEMBLY & INSTALLATION SEQUENCE
Project Consultation & Configuration Selection
Wing count, glass specification, operation mode, collapsible door set requirement, and mounting dimensions are confirmed with the architect and building owner. Emergency exit compliance requirements are reviewed and collapsible door set option is specified where applicable. Motorized drive system power supply arrangements are confirmed.
Structural Opening Preparation
The building entrance structural opening is prepared to the specified diameter and header height dimensions for the selected revolving door configuration. Floor surface condition and load capacity are verified for the rotational base bearing assembly.
Base Bearing & Center Column Installation
The rotational base bearing assembly is installed at the floor center point of the revolving door opening. The center column — the primary vertical structural element of the revolving door — is erected on the base bearing and verified for plumb and rotational alignment.
Top Housing & Header Installation
The top housing assembly is installed at the header level, connecting the center column to the surrounding entrance structure and providing the upper rotational bearing and canopy support for the revolving door assembly.
Glass Wing Panel Installation
Frameless glass wing panels are installed onto the rotational hardware connecting them to the center column, at the specified wing count configuration. Panel alignment, sweep clearance at floor level, and seal contact at the outer drum are set and verified.
Outer Drum & Curved Glass Installation
The outer drum curved glass panels and stainless steel structural connections are installed, completing the enclosure of the revolving door compartments and providing the weather seal between the door body and the surrounding entrance wall assembly.
Motorized Drive System Installation & Programming (Motorized Variants)
The motorized drive system is installed and connected to the facility power supply. Rotation speed, acceleration, deceleration, and safety sensor parameters are programmed and adjusted for the specific traffic and operational requirements of the installation.
Collapsible Mechanism Testing (Where Specified) Where the collapsible door set option is installed, the emergency collapse mechanism is tested through its full operation cycle, and compliance with the applicable emergency exit standard is verified and documented.
Full Operational Testing & Handover
Complete operational testing is conducted across all rotation modes, safety sensor response, emergency collapse function where applicable, and weather seal performance. Final adjustments are made and system handover documentation is completed.
DEPLOYMENT SCENARIOS & USE CASES
Madoors USA All Glass Revolving Doors are specified for premium architectural building entrances across a wide range of commercial, hospitality, institutional, and public building applications.
- Luxury hotel and resort main lobby entrances
- Corporate headquarters and premium office building entrances
- High-end retail flagship store and department store entrances
- Shopping center and luxury mall anchor entrances
- Airport terminal and international departure hall entrances
- Bank headquarters and financial institution main entrances
- Museum, gallery, and cultural institution public entrances
- Government and civic building public entrance facades
- University and academic institution landmark building entrances
- Hospital and private healthcare facility main entrances
- Residential luxury apartment tower lobby entrances
- Convention center and exhibition hall public entrances
COMPLETE ENTRANCE SYSTEM
The Madoors USA All Glass Revolving Door is part of a complete building entrance product range. For projects requiring a comprehensive entrance solution, Madoors USA also supplies security doors and portals, speed gates, tripod turnstiles, access gates, and full height turnstiles — allowing a complete, architecturally coordinated entrance and access control system to be specified and supplied from a single source. Contact Madoors USA for full entrance system consultation and project specification support.
