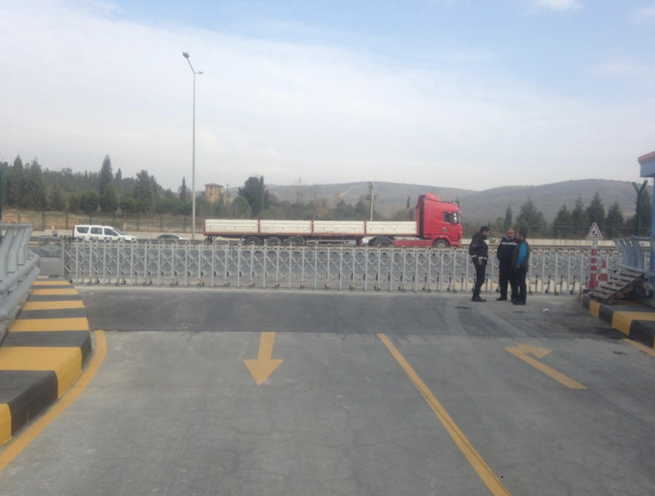

Accordion Automatic Sliding Gate
The Accordion Automatic Sliding Gate is a motorized, accordion-folding telescopic sliding gate engineered for high-traffic industrial, commercial, and institutional entrances. Built from high-strength aluminum alloy or steel, the gate delivers stable, durable automated access control across a standard height range of 3 to 20 meters — with gate length, height, and color available on a fully custom basis.
The telescopic accordion mechanism allows the gate to fold and compact into a fraction of its open span, making it the preferred solution for entrances where a conventional swing or standard sliding gate cannot operate due to space constraints. The gate is suitable for factories, schools, government facilities, hotels, hospitals, airports, and railway stations — any environment requiring reliable, automated, high-clearance access control with minimal footprint.
The motorized drive system features an intelligent robot control system with options for monorail or double-track walking configurations, a wireless remote control with up to 50 meters effective range, and a gate sliding speed of approximately 25 meters per minute. The full system includes anti-collision, anti-climb, anti-corrosion, UV-resistance, waterproof, and quakeproof protection as standard.
TECHNICAL SPECIFICATIONS
The Accordion Automatic Sliding Gate is available in industrial-grade aluminum alloy 6063-T5 or steel and stainless steel construction. The 6063-T5 aluminum profile delivers high hardness and tensile strength while keeping overall gate weight low for smooth motorized operation. Steel and stainless steel variants are available for applications requiring greater structural mass or enhanced corrosion resistance.
Surface finishing is applied via electrophoresis color coating — a process that delivers long-term color stability, fade resistance, and corrosion protection superior to conventional paint finishes. Gate height is configurable from 3 to 20 meters as standard, with gate length and color fully customizable to match site requirements.
The motorized drive unit incorporates engine overheat protection that automatically cuts power if the motor temperature reaches 120°C, protecting the drive system from thermal damage during sustained or high-frequency operation. Gate sliding speed is approximately 25 meters per minute. The running wheel system is manufactured from cast aluminum and has been tested to 2,000,000 operational cycles without measurable abrasion, ensuring long-term mechanical reliability without wheel replacement.
The control system is available in three configurations: intelligent robot control, monorail walking control, and double-track walking control. Display options include a standard 8-bit static screen or an optional 500-bit rolling screen. Wireless remote control operation is standard, with an effective range of up to 50 meters.
KEY FEATURES
Industrial Aluminum 6063-T5 Construction
The gate profile is manufactured from 6063-T5 aluminum alloy, providing high hardness and tensile strength with a low overall weight profile. Steel and stainless steel construction options are available for heavier-duty or corrosion-critical installations.
Accordion Telescopic Folding Mechanism

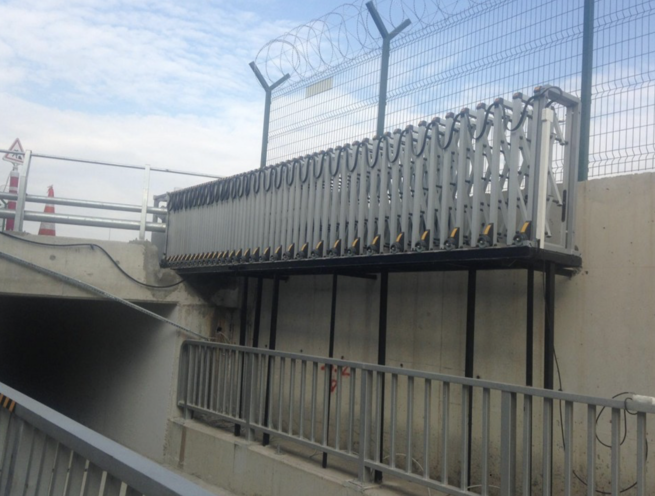

The accordion-type folding mechanism allows the gate to retract into a compact stack, requiring minimal lateral space alongside the entrance opening. This makes the telescopic sliding gate the practical solution for wide-span entrances where conventional gate types cannot operate.
Height Range 3 to 20 Meters
The gate is available in standard heights from 3 to 20 meters, covering everything from standard pedestrian-vehicle entrances to large-scale industrial and infrastructure access points. Gate length and color are fully customizable.
Motorized Drive System — 25 m/min
The motorized drive delivers a gate sliding speed of approximately 25 meters per minute, ensuring rapid opening and closing cycles for high-traffic entrances without creating vehicle or personnel queuing.
Engine Overheat Protection
The motor unit features automatic power cutoff if the engine temperature reaches 120°C, protecting the drive system from thermal damage during high-frequency operation cycles and extending overall motor service life.
2,000,000-Cycle Abrasion-Tested Wheels
Running wheels are manufactured from cast aluminum and tested to 2,000,000 operational cycles without abrasion. This directly translates to long-term operational reliability and low maintenance requirements across the gate's service life.
Anti-Wind Hook System
Anti-wind hooks are fitted as standard to prevent gate overturn or displacement during high-wind conditions, maintaining structural integrity and operational safety in exposed outdoor installations.
Anti-Bumping Obstacle Sensor
The gate is equipped with an anti-bumping sensor that detects any obstacle in the closing path and halts gate movement, preventing collision damage to vehicles, equipment, or personnel.
Anti-Climb Alarm System
An anti-climb-over alarm activates immediately if any person attempts to climb over the gate, providing active perimeter security beyond the basic access control function of the gate.
Caution Light
A flashing caution light activates during gate operation, alerting personnel and vehicles to gate movement and reducing the risk of collision or injury at active entrances.
Speed Clutch
The speed clutch system protects the gate mechanism and motor from overload during operation, providing smooth speed transition and mechanical protection under variable load conditions.
Wireless Remote Control — 50m Range
The gate operates via wireless remote control with an effective range of up to 50 meters, allowing operators to control gate access from vehicles or fixed control points without physical contact with the gate system.
Three Walking Control System Options
The gate is available with an intelligent robot control system, a monorail walking control system, or a double-track walking control system — selectable based on gate span, installation environment, and operational requirements.
Electrophoresis Color Coating
The gate surface is finished using an electrophoresis color coating process, delivering long-term fade resistance and corrosion protection that outperforms standard paint finishes in outdoor environments.
Full Environmental & Security Protection
The gate is rated anti-collision, anti-corrosion, anti-climb, anti-lifting, anti-moth, UV-resistant, waterproof, moisture-proof, quakeproof, and theft-proof as standard — covering the full range of environmental and security threats relevant to outdoor access control installations.
Easy Installation & Maintenance
The gate system is designed for straightforward installation and low ongoing maintenance requirements, with MAdoorS installation support available and all components accessible for routine inspection and servicing.
ASSEMBLY & INSTALLATION SEQUENCE
Site Survey & Track Layout
Assess the entrance width, ground surface, and available retraction space alongside the opening. Determine the appropriate walking control system configuration — monorail or double-track — based on gate span and ground conditions. Mark the track centerline and anchor positions.
Track & Foundation Installation
Install the ground track system along the marked centerline. For double-track configurations, both tracks are set in parallel and leveled. Foundation anchor points for the motor unit and gate end posts are prepared and set.
Gate Panel Assembly
Assemble the accordion telescopic gate panels according to the specified gate length and height. Aluminum 6063-T5 or steel profiles are connected in the accordion folding configuration, with running wheels attached to the base rail.
Motor Unit & Drive System Installation
Mount the motorized drive unit at the designated motor position. Connect the drive system to the gate panel, configure the selected walking control system, and fit the caution light and anti-wind hooks.
Sensor & Alarm System Fitout
Install the anti-bumping obstacle sensor at the gate leading edge. Configure the anti-climb-over alarm system. Connect all sensor outputs to the control unit.
Control System & Remote Programming
Commission the control system — robot control, monorail, or double-track as specified. Program the wireless remote control units. Set the display screen configuration — 8-bit static or 500-bit rolling screen as selected.
Testing & Handover
Conduct full operational testing across open, close, obstacle detection, anti-climb alarm, overheat protection, and remote control functions. Verify gate sliding speed, wheel tracking, and wind hook engagement. Complete installation handover and operator training.
DEPLOYMENT SCENARIOS & USE CASES
The Accordion Automatic Sliding Gate is suited to any entrance environment requiring automated, wide-span access control with a compact retraction footprint and robust security features.
- Factory and industrial facility main entrances
- School and university campus perimeter gates
- Government building and secure facility access points
- Hotel and resort vehicle entrance gates
- Hospital and healthcare campus access control
- Airport and airside perimeter access gates
- Railway station and transport hub entrances
- Warehouse and logistics facility vehicle gates
- Shopping center and retail park entrances
- Residential compound and gated community vehicle gates
- Power station and utility infrastructure perimeter access
CUSTOMIZATION OPTIONS
The Accordion Automatic Sliding Gate is available with full customization across gate length, height, material, color, and control system configuration. Height range covers 3 to 20 meters as standard. Material options include aluminum alloy 6063-T5, steel, and stainless steel. Surface color is applied via electrophoresis coating in any specified color. Walking control system, display screen type, and remote control configuration are all selectable at the time of order. Custom designs incorporating site-specific panel patterns, branding, or security specifications are available on request.
RELOCATION & REINSTALLATION
The Accordion Automatic Sliding Gate is designed for disassembly and reinstallation if site requirements change. The modular accordion panel system, track components, and motor unit can all be removed, transported, and reinstalled at a new location. This makes the gate a transferable capital asset rather than a fixed site installation, preserving investment value if the protected facility relocates or the entrance configuration changes.
